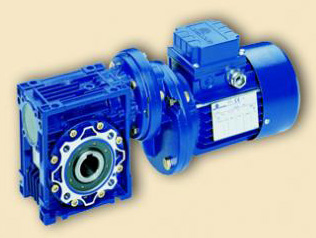

Мощности подключаемых к червячным мотор-редукторам PCRV электродвигателей 0,09 - 0,25 кВт
На мотор редукторы PCRV устанавливаются различной мощности электродвигатели. Техническая информация представлена в соответствующих таблицах.
| Мощность двигателя, кВт | Частота вращения выходного вала, об/мин | Крутящий момент, Нм | Сервис-фактор | Передаточное число | Тип мотор-редуктора | Двигатель IEC | Радиальная нагрузка, Н |
|---|---|---|---|---|---|---|---|
| 0,09 | 12.0 | 47 | 1.3 | 75 | PC063+NMRV040 | 63B6 | 3283 |
| 10.0 | 51 | 1.4 | 90 | 3488 | |||
| 7.5 | 62 | 1.1 | 120 | 3490 | |||
| 6.0 | 72 | 0.8 | 150 | PC063+NMRV040 | 63B6 | 3490 | |
| 5.0 | 79 | 0.7 | 180 | 3490 | |||
| 6.0 | 73 | 1.6 | 150 | PC063+NMRV050 | 63B6 | 4840 | |
| 5.0 | 81 | 1.3 | 180 | 4840 | |||
| 3.8 | 94 | 0.9 | 240 | 4840 | |||
| 3.0 | 106 | 0.7 | 300 | 4840 | |||
| 3.8 | 99 | 1.7 | 240 | PC063+NMRV063 | 63B6 | 6270 | |
| 3.0 | 109 | 1.4 | 300 | 6270 | |||
| 0,12 | 18.7 | 42 | 1.2 | 75 | PC063+NMRV040 | 63A4 | 2833 |
| 15.6 | 46 | 1.2 | 90 | 3011 | |||
| 11.7 | 57 | 0.9 | 120 | 3314 | |||
| 9.3 | 66 | 0.7 | 150 | 3490 | |||
| 7.8 | 74 | 0.6 | 180 | 3490 | |||
| 12.0 | 62 | 1.0 | 75 | PC063+NMRV040 | 63C6 | 3283 | |
| 10.0 | 68 | 1.1 | 90 | 3488 | |||
| 7.5 | 83 | 0.8 | 120 | 3490 | |||
| 9.3 | 68 | 1.3 | 150 | PC063+NMRV050 | 63A4 | 4840 | |
| 7.8 | 75 | 1.1 | 180 | 4840 | |||
| 5.8 | 88 | 0.8 | 240 | 4840 | |||
| 4.7 | 98 | 0.7 | 300 | 4840 | |||
| 12.0 | 63 | 1.7 | 75 | PC063+NMRV050 | 63C6 | 4506 | |
| 10.0 | 70 | 2.1 | 90 | 4788 | |||
| 7.5 | 84 | 1.5 | 120 | 4840 | |||
| 6.0 | 97 | 1.2 | 150 | 4840 | |||
| 5.0 | 108 | 1.0 | 180 | 4840 | |||
| 3.8 | 125 | 0.7 | 240 | 4840 | |||
| 5.8 | 92 | 1.5 | 240 | PC063+NMRV063 | 63A4 | 6270 | |
| 4.7 | 103 | 1.2 | 300 | 6270 | |||
| 6.0 | 101 | 2.1 | 150 | PC063+NMRV063 | 63C6 | 6270 | |
| 5.0 | 112 | 1.8 | 180 | 6270 | |||
| 3.8 | 131 | 1.3 | 240 | 6270 | |||
| 3.0 | 145 | 1.0 | 300 | 6270 | |||
| 0,18 | 18.7 | 64 | 0.8 | 75 | PC063+NMRV040 | 63 B4 | 2833 |
| 15.6 | 70 | 0.8 | 90 | 3011 | |||
| 11.7 | 85 | 0.6 | 120 | 3314 | |||
| 18.7 | 64 | 1.4 | 75 | PC063+NMRV050 | 63 B4 | 3889 | |
| 15.6 | 71 | 1.5 | 90 | 4132 | |||
| 11.7 | 87 | 1.1 | 120 | 4548 | |||
| 9.3 | 101 | 0.9 | 150 | 4840 | |||
| 7.8 | 113 | 0.7 | 180 | 4840 | |||
| 5.8 | 133 | 0.6 | 240 | 4840 | |||
| 12.0 | 95 | 1.2 | 75 | PC071+NMRV050 | 71A6 | 4506 | |
| 10.0 | 105 | 1.4 | 90 | 4788 | |||
| 7.5 | 126 | 1.0 | 120 | 4840 | |||
| 9.3 | 103 | 1.7 | 150 | PC063+NMRV063 | 63 B4 | 6270 | |
| 7.8 | 117 | 1.4 | 180 | 6270 | |||
| 5.8 | 139 | 1.0 | 240 | 6270 | |||
| 4.7 | 155 | 0.8 | 300 | 6270 | |||
| 12.0 | 97 | 2.2 | 75 | PC071+NMRV063 | 71A6 | 5889 | |
| 10.0 | 107 | 2.4 | 90 | 6259 | |||
| 7.5 | 131 | 1.8 | 120 | 6270 | |||
| 6.0 | 152 | 1.4 | 150 | 6270 | |||
| 5.0 | 168 | 1.2 | 180 | 6270 | |||
| 3.8 | 197 | 0.9 | 240 | 6270 | |||
| 3.0 | 218 | 0.7 | 300 | 6270 | |||
| 5.0 | 179 | 1.7 | 180 | PC071+NMRV075 | 71A6 | 7380 | |
| 3.8 | 211 | 1.2 | 240 | 7380 | |||
| 3.0 | 235 | 1.0 | 300 | 7380 | |||
| 0,25 | 18.7 | 88 | 1.0 | 75 | PC071+NMRV050 | 71А4 | 3889 |
| 15.6 | 98 | 1.1 | 90 | 4132 | |||
| 11.7 | 121 | 0.8 | 120 | 4548 | |||
| 18.7 | 91 | 1.8 | 75 | PC071+NMRV063 | 71А4 | 5083 | |
| 15.6 | 100 | 2.0 | 90 | 5401 | |||
| 11.7 | 125 | 1.5 | 120 | 5945 | |||
| 9.3 | 143 | 1.2 | 150 | 6270 | |||
| 7.8 | 163 | 1.0 | 180 | 6270 | |||
| 5.8 | 192 | 0.7 | 240 | 6270 | |||
| 4.7 | 215 | 0.6 | 300 | 6270 | |||
| 12.0 | 135 | 1.6 | 75 | PC071+NMRV063 | 71В6 | 5889 | |
| 10.0 | 148 | 1.8 | 90 | 6259 | |||
| 7.5 | 181 | 1.3 | 120 | 6270 | |||
| 6.0 | 211 | 1.0 | 150 | 6270 | |||
| 9.3 | 151 | 1.7 | 150 | PC071+NMRV075 | 71А4 | 7380 | |
| 7.8 | 172 | 1.4 | 180 | 7380 | |||
| 5.8 | 201 | 1.1 | 240 | 7380 | |||
| 4.7 | 230 | 0.9 | 300 | 7380 | |||
| 12.0 | 139 | 2.4 | 75 | PC071+NMRV075 | 71В6 | 6952 | |
| 10.0 | 155 | 2.5 | 90 | 7380 | |||
| 7.5 | 191 | 1.9 | 120 | 7380 | |||
| 6.0 | 219 | 1.5 | 150 | 7380 | |||
| 5.0 | 248 | 1.2 | 180 | 7380 | |||
| 5.0 | 263 | 1.9 | 180 | PC071+NMRV090 | 71В6 | 8180 | |
| 3.8 | 318 | 1.4 | 240 | 8180 | |||
| 3.0 | 358 | 1.1 | 300 | 8180 |
