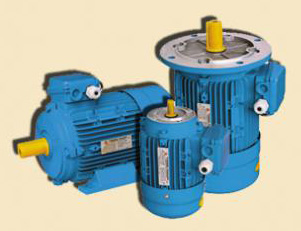

Электродвигатели Able (стандарт IEC (Cenelek), Италия)
Основные достоинства электродвигателей Able:
- Габаритные и присоединительные размеры, а также схема подключения электродвигателя соответствуют общепринятому стандарту IEC, что обеспечивыет взаимозаменяемость данных двигателей практически со всеми аналогами других производителей;
- Высокие показатели энергоэффективности и долговечности;
- Широкий диапазон мощностей оборотов;
- Европейское качество по приемлемым ценам.
- Защита от пыли и влаги IP55;
- Класс изоляции F;
- 380/415В 50/60Гц.
Цена: от 1 700 руб
Технические характеристики Able
|
Тип |
Мощность (кВт) |
Напря- |
Сила тока (A) |
Частота вращения (об/мин) |
КПД (%) |
cosф |
Tslart/Tn |
Tmax/Tn |
Ist/In |
Масса (кг) |
|---|---|---|---|---|---|---|---|---|---|---|
|
3000 об/мин |
||||||||||
|
MS561-2 |
0.09 |
220/380 |
0.57/0.33 |
2800 |
62 |
0.68 |
2.3 |
2.4 |
6 |
4.6 |
|
MS562-2 |
0.12 |
220/380 |
0.67/0.38 |
2800 |
67 |
0.71 |
2.3 |
2.4 |
6 |
4.8 |
|
MS631-2 |
0.18 |
220/380 |
0.91/0.53 |
2800 |
69 |
0.75 |
2.2 |
2.4 |
6 |
5 |
|
MS632-2 |
0.25 |
220/380 |
1.17/0.68 |
2800 |
72 |
0.78 |
2.2 |
2.4 |
6 |
5.3 |
|
MS711-2 |
0.37 |
220/380 |
1.65/0.95 |
2800 |
73.5 |
0.80 |
2.2 |
2.4 |
6 |
6.5 |
|
MS712-2 |
0.55 |
220/380 |
2.33/1.35 |
2800 |
75.5 |
0.82 |
2.2 |
2.4 |
6 |
7 |
|
MS801-2 |
0.75 |
220/380 |
3.03/1.75 |
2800 |
76.5 |
0.85 |
2.2 |
2.4 |
6 |
9 |
|
MS802-2 |
1.1 |
220/380 |
4.42/2.55 |
2800 |
77 |
0.85 |
2.2 |
2.4 |
6 |
10.5 |
|
MS90S-2 |
1.5 |
220/380 |
6.01/3.84 |
2800 |
77 |
0.85 |
2.2 |
2.4 |
6 |
14 |
|
MS90L-2 |
2.2 |
220/380 |
8.61/4.98 |
2800 |
78 |
0.86 |
2.2 |
2.4 |
6 |
16.5 |
|
MS100L-2 |
3.0 |
220/380 |
11.1/6.4 |
2870 |
82 |
0.87 |
2.2 |
2.3 |
7 |
24.5 |
|
MS112M-2 |
4.0 |
380/660 |
8.2/4.7 |
2890 |
85.5 |
0.87 |
2.2 |
2.3 |
7 |
30 |
|
MS132S1-2 |
5.5 |
380/660 |
11/6.3 |
2900 |
85.5 |
0.88 |
2.0 |
2.2 |
7 |
42 |
|
MS132S2-2 |
7.5 |
380/660 |
15/8.6 |
2900 |
86.2 |
0.88 |
2.0 |
2.2 |
7 |
50 |
|
MS160M1-2 |
11.0 |
380/660 |
21.3/12.2 |
2930 |
88 |
0.88 |
2.0 |
2.2 |
7 |
|
|
MS160M2-2 |
15.0 |
380/660 |
28.7/16.4 |
2930 |
89 |
0.89 |
2.0 |
2.2 |
7 |
|
|
MS160L-2 |
18.5 |
380/660 |
34.6/19.8 |
2930 |
90 |
0.90 |
2.0 |
2.2 |
7 |
|
|
MS180M-2 |
22.0 |
380/660 |
40.9/23.4 |
2930 |
90.5 |
0.90 |
2.0 |
2.2 |
7 |
|
|
1500 об/мин |
||||||||||
|
MS561-4 |
0.06 |
220/380 |
0.49/0.28 |
1400 |
56 |
0.58 |
2.3 |
2.4 |
6 |
4.6 |
|
MS562-4 |
0.09 |
220/380 |
0.67/0.39 |
1400 |
58 |
0.61 |
2.3 |
2.4 |
6 |
4.8 |
|
MS631-4 |
0.12 |
220/380 |
0.84/0.48 |
1400 |
60 |
0.63 |
2.2 |
2.4 |
6 |
4.8 |
|
MS632-4 |
0.18 |
220/380 |
1.12/0.65 |
1400 |
64 |
0.66 |
2.2 |
2.4 |
6 |
5 |
|
MS711-4 |
0.25 |
220/380 |
1.44/0.83 |
1400 |
67 |
0.68 |
2.2 |
2.4 |
6 |
6.3 |
|
MS712-4 |
0.37 |
220/380 |
1.94/1.12 |
1400 |
69.5 |
0.72 |
2.2 |
2.4 |
6 |
7 |
|
MS801-4 |
0.55 |
220/380 |
2.69/1.56 |
1400 |
73.5 |
0.73 |
2.2 |
2.4 |
6 |
9 |
|
MS802-4 |
0.75 |
220/380 |
3.48/2.01 |
1400 |
75.5 |
0.75 |
2.2 |
2.4 |
6 |
10.5 |
|
MS90S-4 |
1.1 |
220/380 |
4.74/2.75 |
1400 |
78 |
0.78 |
2.2 |
2.4 |
6 |
14 |
|
MS90L-4 |
1.5 |
220/380 |
6.31/3.65 |
1400 |
79 |
0.79 |
2.2 |
2.4 |
6 |
15.5 |
|
MS100L1-4 |
2.2 |
220/380 |
8.6/5.0 |
1430 |
81 |
0.82 |
2.2 |
2.3 |
7 |
23 |
|
MS100L2-4 |
3.0 |
220/380 |
11.7/6.8 |
1430 |
82.5 |
0.81 |
2.2 |
2.3 |
7 |
27 |
|
MS112M-4 |
4.0 |
380/660 |
8.8/5.1 |
1440 |
84.5 |
0.82 |
2.2 |
2.3 |
7 |
33.5 |
|
MS132S-4 |
5.5 |
380/660 |
12/6.9 |
1440 |
85.5 |
0.84 |
2.2 |
2.2 |
7 |
49.5 |
|
MS132M-4 |
7.5 |
380/660 |
15/8.6 |
1440 |
87 |
0.85 |
2.2 |
2.2 |
7 |
57.5 |
|
MS160M-4 |
11 |
380/660 |
22.3/12.7 |
1460 |
88 |
0.85 |
2.0 |
2.2 |
7 |
|
|
MS160L-4 |
15 |
380/660 |
30/17.1 |
1460 |
89 |
0.85 |
2.0 |
2.2 |
7 |
|
|
MS180M-4 |
18.5 |
380/660 |
36.4/20.8 |
1470 |
90.5 |
0.85 |
2.2 |
2.2 |
7.5 |
|
|
MS180L-4 |
22 |
380/660 |
43.1/24.6 |
1470 |
91 |
0.85 |
2.2 |
2.2 |
7.5 |
|
|
1000 об/мин |
||||||||||
|
MS90S-6 |
0.75 |
220/380 |
4.0/2.3 |
910 |
72.5 |
0.70 |
2.2 |
2.2 |
5.5 |
14.5 |
|
MS90L-6 |
1.1 |
220/380 |
5.5/3.2 |
910 |
73.5 |
0.72 |
2.2 |
2.2 |
5.5 |
17 |
|
MS100L-6 |
1.5 |
220/380 |
6.9/4.0 |
940 |
77.5 |
0.74 |
2.2 |
2.2 |
6 |
22.5 |
|
MS112M-6 |
2.2 |
220/380 |
9.7/5.6 |
940 |
80.5 |
0.74 |
2.2 |
2.2 |
6 |
29 |
|
MS132S6 |
3.0 |
220/380 |
12.4/7.2 |
960 |
83 |
0.76 |
2.0 |
2.0 |
6.5 |
48 |
|
MS132M1-6 |
4.0 |
380/660 |
9.4/5.4 |
960 |
84 |
0.77 |
2.0 |
2.0 |
6.5 |
49 |
|
MS132M2-6 |
5.5 |
380/660 |
13/7.5 |
960 |
85.3 |
0.78 |
2.0 |
2.0 |
6.5 |
57.5 |
|
MS160M-6 |
7.5 |
380/660 |
16.5/9.43 |
970 |
86 |
0.80 |
2.0 |
2.0 |
6.5 |
|
|
MS160L6 |
11.0 |
380/660 |
24.1/13.8 |
970 |
87.5 |
0.79 |
2.0 |
2.0 |
6.5 |
|
|
MS180L-6 |
15.0 |
380/660 |
31.5/18 |
970 |
89 |
0.81 |
2.0 |
2.0 |
7.0 |
|
|
750 об/мин |
||||||||||
|
MS132S-8 |
2.2 |
220/380 |
10/5.8 |
710 |
85.5 |
0.71 |
2.0 |
2.0 |
5.5 |
39 |
|
MS132M-8 |
3.0 |
220/380 |
13.3/7.7 |
710 |
82 |
0.72 |
2.0 |
2.0 |
5.5 |
45 |
|
MS160M1-8 |
4.0 |
380/660 |
10.2/5.8 |
720 |
81 |
0.73 |
2.0 |
2.0 |
6.0 |
|
|
MS160M2-8 |
5.5 |
380/660 |
13.6/7.8 |
720 |
83 |
0.74 |
2.0 |
2.0 |
6.0 |
|
|
MS160L-8 |
7.5 |
380/660 |
17.7/10,1 |
720 |
85.5 |
0.75 |
2.0 |
2.0 |
6.0 |
|
|
MS180L-8 |
11 |
380/660 |
25.1/14.3 |
730 |
87.5 |
0.76 |
2.0 |
2.0 |
6.5 |
|
Технические характеристики (двигатели повышенной мощности)
|
Тип |
Мощность (кВт) |
Напря- |
Сила тока (A) |
Частота вращения (об/мин) |
КПД (%) |
cosф |
Tslart/Tn |
Tmax/Tn |
Ist/In |
Масса (кг) |
|---|---|---|---|---|---|---|---|---|---|---|
|
3000 об/мин |
||||||||||
|
MS633-2 |
0.37 |
220/380 |
2.0/1.15 |
2800 |
68 |
0.74 |
2.5 |
2.7 |
6 |
5.6 |
|
MS713-2 |
0.75 |
220/380 |
3.6/2.1 |
2800 |
73 |
0.8 |
2.6 |
2.9 |
6 |
8.1 |
|
MS803-2 |
1.5 |
220/380 |
5.87/3.4 |
2800 |
77 |
0.85 |
2.8 |
3.1 |
6 |
12 |
|
MS90L2-2 |
3 |
220.380 |
11.64/6.74 |
2800 |
80 |
0.83 |
3 |
3.2 |
6 |
195 |
|
MS100L2-2 |
4 |
220/380 |
13.6/7.87 |
2850 |
82 |
0.87 |
2.5 |
2.7 |
7 |
28.8 |
|
MS112M2-2 |
5.5 |
380/660 |
12.5/7.3 |
2890 |
84 |
0.88 |
2.5 |
2.7 |
7 |
36 |
|
MS112M3-2 |
7.5 |
380/660 |
15.4/8.9 |
2890 |
85 |
0.88 |
2.5 |
2.7 |
7.5 |
39 |
|
MS132M1-2 |
11 |
380/660 |
23/13.3 |
2900 |
85 |
0.89 |
2.5 |
2.7 |
7.5 |
60.5 |
|
MS132M2-2 |
15 |
380/660 |
30/17.4 |
2900 |
85 |
0.89 |
2.5 |
2.7 |
7.5 |
68 |
|
1500 об/мин |
||||||||||
|
MS633-4 |
0.25 |
220/380 |
1.52/0.88 |
1360 |
60 |
0.69 |
2.2 |
2.4 |
35 |
5.4 |
|
MS713-4 |
0.55 |
220/380 |
2.73/1.58 |
1355 |
68 |
0.72 |
2.2 |
2.4 |
5 |
8.1 |
|
MS803-4 |
1.1 |
220/380 |
5/2.9 |
1400 |
75 |
0.76 |
2.3 |
2.5 |
5 |
13.2 |
|
MS90L2-4 |
1.85 |
220/380 |
7.77/4.5 |
1400 |
77 |
0.79 |
2.5 |
2.7 |
5.5 |
18 |
|
MS100L3-4 |
4 |
220/380 |
15.5/9 |
1400 |
81 |
0.8 |
25 |
2.7 |
6 |
29.1 |
|
MS112M2-4 |
5.5 |
380/660 |
12.2/7.06 |
1410 |
82 |
0.81 |
2.7 |
3 |
7 |
36.7 |
|
MS132M2-4 |
9.2 |
380/660 |
19.5/11.3 |
1420 |
85 |
0.83 |
2.7 |
3 |
7 |
61.5 |
|
MS132M3-4 |
11 |
380/660 |
22/12.7 |
1420 |
85 |
0.85 |
2.5 |
2.7 |
7.5 |
67 |
Технические характеристики (однофазные двигатели)
|
Тип |
Мощность (кВт) |
Напря- |
Сила тока (A) |
Частота вращения (об/мин) |
КПД (%) |
cosф |
Tslart/Tn |
Tmax/Tn |
Ist/In |
Масса (кг) |
|---|---|---|---|---|---|---|---|---|---|---|
|
3000 об/мин |
||||||||||
|
MY631-2 |
0.18 |
220 |
1.48 |
2800 |
60 |
0.92 |
0.4 |
1.7 |
5 |
3.9 |
|
MY632-2 |
0.25 |
220 |
1.96 |
2800 |
63 |
0.92 |
0.4 |
1.7 |
7 |
4.4 |
|
MY711-2 |
0.37 |
220 |
2.73 |
2800 |
67 |
0.92 |
0.35 |
1.7 |
10 |
6.2 |
|
MY712-2 |
0.55 |
220 |
3.88 |
2800 |
70 |
0.92 |
0.35 |
1.7 |
15 |
6.5 |
|
MY801-2 |
0.75 |
220 |
5.15 |
2800 |
72 |
0.92 |
0.33 |
1.7 |
20 |
8.3 |
|
MY802-2 |
1.10 |
220 |
7.02 |
2800 |
75 |
0.95 |
0.33 |
1.7 |
30 |
9 |
|
MY90S-2 |
1.50 |
220 |
9.44 |
2800 |
76 |
0.95 |
0.3 |
1.7 |
45 |
13 |
|
MY90L-2 |
2.20 |
220 |
13.67 |
2800 |
77 |
0.95 |
0.3 |
1.7 |
65 |
15 |
|
1500 об/мин |
||||||||||
|
MY631-4 |
0.12 |
220 |
1.10 |
1400 |
55 |
0.90 |
0.4 |
1.7 |
3.5 |
4 |
|
MY632-4 |
0.18 |
220 |
1.62 |
1400 |
56 |
0.90 |
0.4 |
1.7 |
5 |
4.5 |
|
MY711-4 |
0.25 |
220 |
2.02 |
1400 |
61 |
0.92 |
0.35 |
1.7 |
7 |
6.1 |
|
MY712-4 |
0.37 |
220 |
2.95 |
1400 |
62 |
0.92 |
0.35 |
1.7 |
10 |
7 |
|
MY 801-4 |
0.55 |
220 |
4.25 |
1400 |
64 |
0.92 |
0.35 |
1.7 |
15 |
9.5 |
|
MY802-4 |
0.75 |
220 |
5.45 |
1400 |
68 |
0.92 |
0.32 |
1.7 |
20 |
10 |
|
MY90S-4 |
1.10 |
220 |
7.45 |
1400 |
71 |
0.95 |
0.32 |
1.7 |
30 |
13 |
|
MY90L-4 |
1.50 |
220 |
9.83 |
1400 |
73 |
0.95 |
0.3 |
1.7 |
45 |
16 |

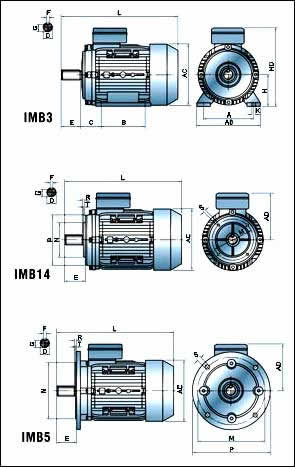

Габаритные и присоединительные размеры
| Типо- размер |
Присоединительные размеры (мм) | Габаритные размеры (мм) | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IMB14 | IMB5 | |||||||||||||||||||||||||
| A | В | С | D | E | F | G | H | К | M | N | P | R | S | T | M | N | P | R | S | T | AB | AC | AD | HD | L | |
| 56 | 90 | 71 | 36 | 9 | 20 | 3 | 7.2 | 56 | 5.8 | 65 | 50 | 80 | 0 | M5 | 2.5 | 100 | 80 | 120 | 0 | 7 | 3.0 | 110 | 120 | 110 | 155 | 195 |
| 63 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | 75 | 60 | 90 | 0 | M5 | 2.5 | 115 | 95 | 140 | 0 | 10 | 3.0 | 130 | 130 | 115 | 165 | 230 |
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 2.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 145 | 145 | 125 | 185 | 255 |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | 0 | M6 | 3.0 | 165 | 130 | 200 | 0 | 12 | 3.5 | 153 | 155 | 130 | 210 | 285 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3.0 | 165 | 130 | 200 | 0 | 12 | 3.5 | 173 | 175 | 136 | 226 | 330 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3.0 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 145 | 235 | 360 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4.0 | 205 | 215 | 170 | 255 | 380 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4.0 | 245 | 240 | 180 | 285 | 400 |
| 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 165 | 130 | 200 | 0 | M10 | 4.0 | 265 | 230 | 300 | 0 | 15 | 4.0 | 280 | 275 | 195 | 325 | 475 |
| 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 165 | 130 | 200 | 0 | M10 | 4.0 | 265 | 230 | 300 | 0 | 15 | 4.0 | 280 | 275 | 195 | 325 | 515 |
| 160M | 254 | 210 | 108 | 43 | 110 | 12 | 37 | 160 | 15 | 215 | 180 | 250 | 0 | M12 | 4.0 | 300 | 250 | 350 | 0 | 15 | 5.0 | 320 | 330 | 255 | 420 | 615 |
| 160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 215 | 180 | 250 | 0 | M12 | 4.0 | 300 | 250 | 350 | 0 | 15 | 5.0 | 320 | 330 | 255 | 420 | 670 |
| 180M | 279 | 241 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 265 | 230 | 300 | 0 | M15 | 4.0 | 300 | 250 | 350 | 0 | 19 | 5.0 | 355 | 380 | 280 | 455 | 700 |
| 180L | 279 | 279 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 265 | 230 | 300 | 0 | M15 | 4.0 | 300 | 250 | 350 | 0 | 19 | 5.0 | 355 | 380 | 280 | 455 | 740 |
